KX018-4

KX018-4

COMPACT EXCAVATORS

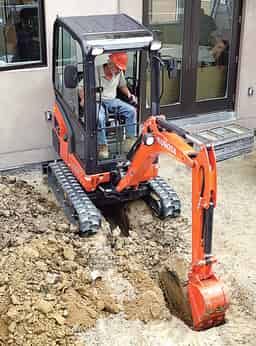

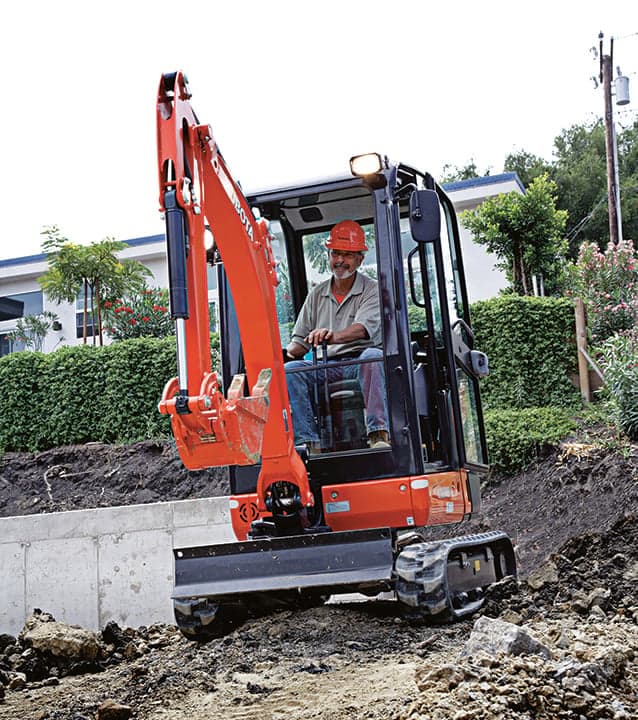

Digging has never been easier than with the Kubota KX018-4 compact excavator. Combine the KX018-4’s 16.1 horsepower with superior maneuverability and versatility, and you’ll never worry about whether or not you can get the job done. Dig to your heart’s desire and do it comfortably, in the KX018-4’s spacious optional cab. There’s never been a better way to move ground.  Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Construction

    $0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!

    Construction
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • LOW-RATE RENTAL BUSINESSES*

    *Not Available for National Accounts or Government Customers

    LOW-RATE RENTAL BUSINESSES*
  • EXCAVATORS

    Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!

    EXCAVATORS
KX018-4

KX018-4

HP

Specifications

Arm Breakout Force, Lbs (kgf)

1852 (840)

Auxiliary Hydraulics Flow Rate, G P M ( L P M)

7.4 (27.7)

Blade Height, In (mm)

9.1in (230)

Blade Width, Ft (mm)

4ft 3.2in (1300) / 3ft 3.0in (990)

Bucket Breakout Force, Lbs (kgf)

3594 (1630)

Crawler Length, Ft (mm)

5ft 2.6in (1590)

Displacement (cu. In.)

54.80

Engine Model

Kubota D902-BH-E4

Fuel Reservoir, Gal (l)

5.6 (21)

Ground Contact Pressure Psi, Kgf (cm2)

3.7 (0.26) / 3.8 (0.27)

Horsepower (gross)

16.1

Hydraulic Oil Reservoir / System, Gal (l)

4.1 (15.5) / 7.4 (28)

Min. Ground Clearance, In (mm)

6.3in (160)

Operating Weight, Lbs (kg)

3748 (1700) / 3968 (1800)

Overall Height, Ft (mm)

7ft 7.7in (2330) / 7ft 8.5in (2350)

Overall Length, Ft (mm)

12ft 2.1in (3710)

Overall Width, Ft (mm)

4ft 3.2in (1300) / 3ft 3.0in (990)

Pump Capacity, G P M ( L P M)

4.6 (17.3) × 2 / 2.8 (10.4) × 1 / 1.7 (6.2) × 1

Traveling Speed: High, Mph (kph)

1.4 (2.2)

Traveling Speed: Low, Mph (kph)

2.5 (4.0)
