KX030-4

KX030-4

COMPACT EXCAVATORS

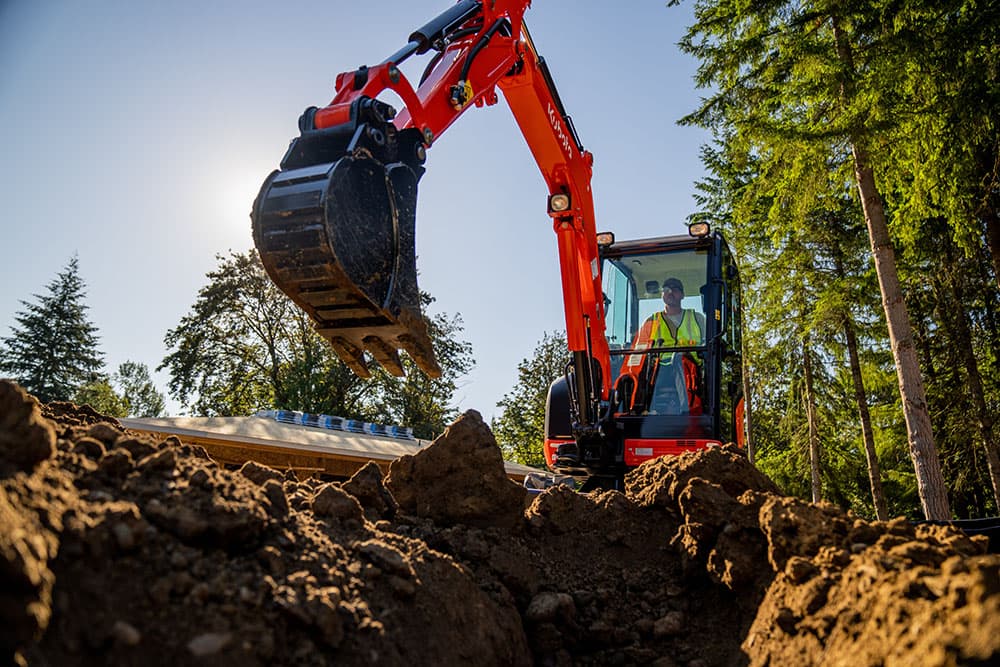

The KX030-4 with 24.7 horsepower gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Construction

    $0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!

    Construction
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • LOW-RATE RENTAL BUSINESSES*

    *Not Available for National Accounts or Government Customers

    LOW-RATE RENTAL BUSINESSES*
  • EXCAVATORS

    Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!

    EXCAVATORS
MAINTENANCE & SAFETY

MAINTENANCE & SAFETY

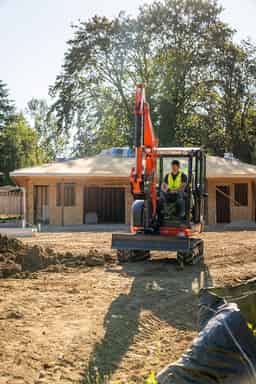

With the KX030-4, operators can work with confidence knowing they are protected by the ROPS/OPG on both the open station or optional enclosed cab. Furthermore, the engine compartment is ergonomically organized with easy access to the radiator and engine oil cooler to make routine maintenance and inspections a breeze.

  • ROPS/OPG (top guard, level I) canopy and cabin
  • Protected cylinder hoses
  • Travel lock system
  • Swivel negative brake
  • Tie down points

SPACIOUS CAB

SPACIOUS CAB

The large cab offers a wider entrance, greater leg room, more floor space and a luxurious interior to make the work day more comfortable. Operability is greatly enhanced with more easy-to-use features than ever before.

  • Large operator's station
  • New front meter panel
  • Easy Cab entry and exit
  • Easy-open front slide window



Deluxe Interior

Deluxe Interior

  • Flat foot space
  • 2-speed travel switch
  • Cup holder
  • Suspension seat
Superior Performance

Superior Performance

The KX030-4 gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive.
  • Powerful breakout force
  • Simultaneous operation
  • Thumb bracket and relief valves
  • Proportional flow control of auxiliary circuit
  • Third-line hydraulic return
KX030-4

KX030-4

HP

Specifications

Arm Breakout Force, Lbs (kgf)

3484 (1580.6)

Auxiliary Hydraulics Flow Rate, G P M ( L P M)

13. (49.5)

Blade Height, In (mm)

11.8in (300)

Blade Width, Ft (mm)

4ft 11in (1500)

Bucket Breakout Force, Lbs (kgf)

6924 (3140.7)

Crawler Length, Ft (mm)

6ft 5.9in (1980)

Displacement (cu. In.)

91.4

Engine Model

V1505-BH

Fuel Reservoir, Gal (l)

12.7 (48)

Ground Contact Pressure Psi, Kgf (cm2)

3.9 (0.27) / 4.0 (0.28)

Horsepower (gross)

24.7

Hydraulic Oil Reservoir / System, Gal (l)

9.0 (33.9) / 13.7 (52.0)

Min. Ground Clearance, In (mm)

11.6in (295)

Operating Weight, Lbs (kg)

6272 / 6426 (2845 / 2915)

Overall Height, Ft (mm)

7ft 11in (2420)

Overall Length, Ft (mm)

15ft 1.1in (4600)

Overall Width, Ft (mm)

4ft 11in (1500)

Pump Capacity, G P M ( L P M)

8.3 (31.5) Piston x 2 / 4.7 (18) Gear x 1

Traveling Speed: High, Mph (kph)

2.7 (4.3)

Traveling Speed: Low, Mph (kph)

1.7 (2.7)
